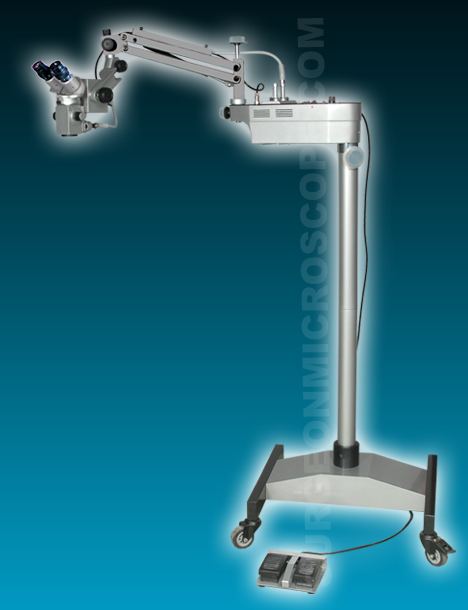

DENTAL Microscope

TECHNICAL SPECIFICATIONS

MICROSCOPE SECTION

45degree inclined binocular tubes
12.5x Wide Field eye pieces
3 Step Magnification ( 7.5x, 12.5x & 20X) or
5 Step Magnification (5x, 7.5x, 12.5x, 20X & 30x)
Objective : F= 200mm
Working Distance : 200mm
Interpupillary Distance
Adjustment: 55mm to 75mm
Motorized Foot Focusing System

ILLUMINATION SECTION

Type : By Optical Light Guide System
Light Source : 15V/150W Halogen Lamp
Illumination Control : Continuous Adjustment
Field of Illumination : 70mm
Filter : Cobalt Blue, Red-Free,
Heat Absorbing Filter

STAND SECTION

Type : Floor Stand
Vertical Range of : 400mm
Counter Balanced Arm

GENERAL INFORMATION

Base Size : 600mm x 550mm
Weight : 50kg Approx.
Height : 1550mm
Electrical Power : AC 220V, 240V, 50/60Hz or 110 V
Power Consumption : 220VA or 110 V

OPTIONAL ACCESSORIES

1. Beam Splitter with C' Mount
2. CCD Camera
3. Monocular Assistoscope
4. Objective Lens 300mm & 400mm

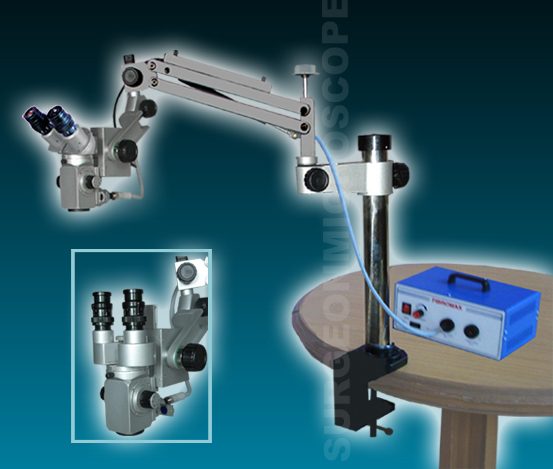

Portable Operating Microscope with Cold Light Source

TECHNICAL SPECIFICATIONS

MICROSCOPE SECTION

45 degree inclined Binocular Tubes
Eye Pieces : 12.5x / 16mm Dioptric Adjustment
Magnification Changes : 3 Step (7.5x, 12.5x, 20x)
Objective : F=200
Working Distance : 200mm
Interpupillary Distance : 55mm to 75mm
Focusing System : Manual

ILLUMINATION SECTION

GENERAL INFORMATION

Electrical Power : AC 220V, 240V, 50/60Hz or 110 V
Power Consumption : 220VA or 110 V
