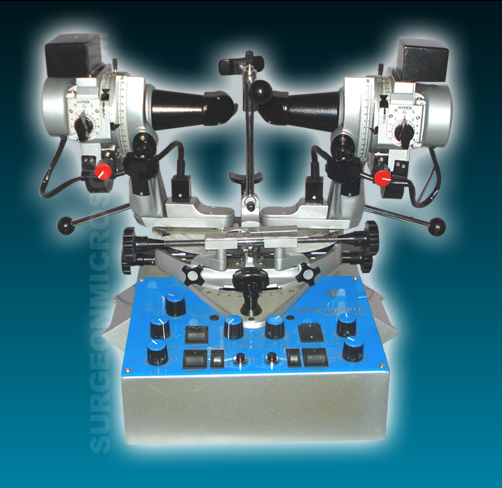

SYNOPTOPHORE |
|
| TECHNICAL SPECIFICATIONS |
Movement of Optical Tubes
Horizontal: Adduction + 50°
Adduction
- 40°
Vertical: Hyper 30°
Hypo
30°
Torsional: Incyclo 20°
Excyco
20°
Slide Illumination: Rheostat controlled 12V Lamp for
each slide. After image illumination by 12V Lamp (for
better illumination)
Auto Flashing: Auto Flashing of Slide illumination
either SIMULTANEOUS OR ALTERNATE in RAPID & VARIABLE
modes. |
| |
| Mode & Mode Selection |
| Five Modes of Slide illumination namely NORMAL, FLASHING
selection RIGHT, FLASHING LEFT, FLASHING R+L & AUTOFLASHING,
can be selected by a single selector knob |
| |
| STANDARD ACCESSORIES |
| A set of slides containing 9 pairs, power cord, dust
cover, 2 spares bulb 12V. |
| |
| OPTIONAL ACCESSORIES |
Instrument Table (Motorized) / Manual Table
Pair of Haidinger Brushes. |
|
|
| |

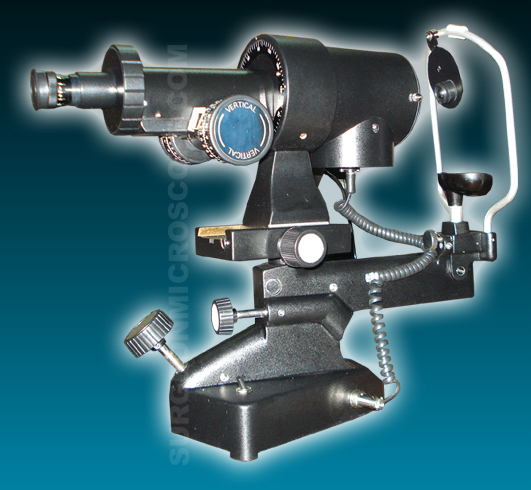

LED Keratometer |
|
| TECHNICAL SPECIFICATIONS |
LED Keratometer (B/L Type)
15x Eye Pieces with adjustable diopteric power of +/-
5diopters
Measuring Range :Diopteric power 36.0 to 52.0 diopters
in0.25 steps, Radius of curvature is 6.4 to 9.5mm in
0.05 step
Dual eye level sighting system
Axis of corneal astigmatism is 0 to 180 in 5degree steps
Precise achromatic objective lens
Adjustable Head and Chin rest with Occluder
LED Illumination
Electrical Power : AC 220V, 240V, 50/60Hz or 110 V
Power Consumption : 220VA or 110 V
|
| |
| STANDARD ACCESSORIES |
Dust Cover
One Spare Bulb
Calibration Ball |
|
|
| |

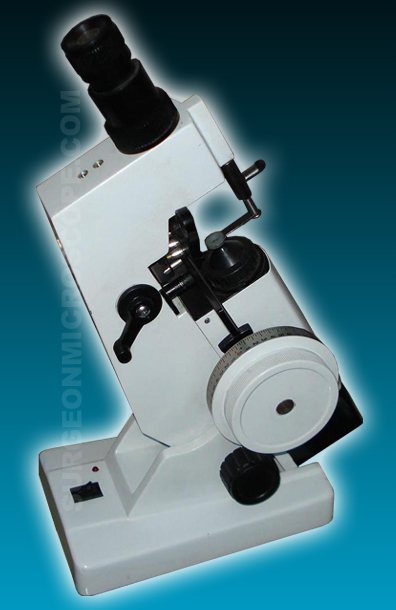

Lensmeter |
|
| TECHNICAL SPECIFICATIONS |
Type : Ocular type external reading system
Vertex Power Range : + 250 step : 0.25D step
upto + 10D
0.50D
step beyond + 10D |
| |
| Cylindrical Axis Scale : |
| 0 to 180degree (1degree step) |
| |
| Prismatic Power Range : |
5 in the viewfield (1 step)
|
| |
| Target : |
| Pinshole Corona Target |
| |
| Eyepiece Focusing : |
| + 3D to +5D |
| |
| Diameter of Lens Accommodated
: |
| 30 to 80mm |
| |
| Tilting Angle : |
| 30degree to 90 degree |
| |
| Light Source : |
| AC 220V 3W LED |
| |
|
|
|
