Student Microscope for Future Surgeons |
|
Our Student Microscope for future Surgeons, is a new concept
for the practice purpose, during studies. This Microscope
is available at a most affordable price.

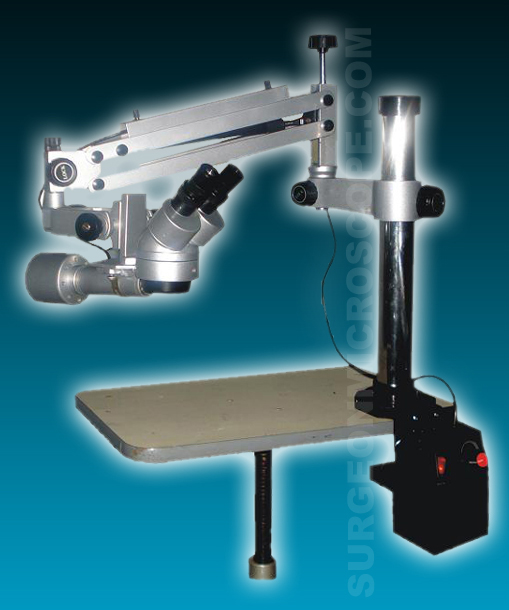

Table Clamp Model of Operating Microscope with Direct
Halogen Light
Eyepiece: 10x
Fixed Magnification of 7x
Focusing System : Manual
Extra Eyepiece of 15x shall be provided for enhancing
the Magnification
|
|
|
| |

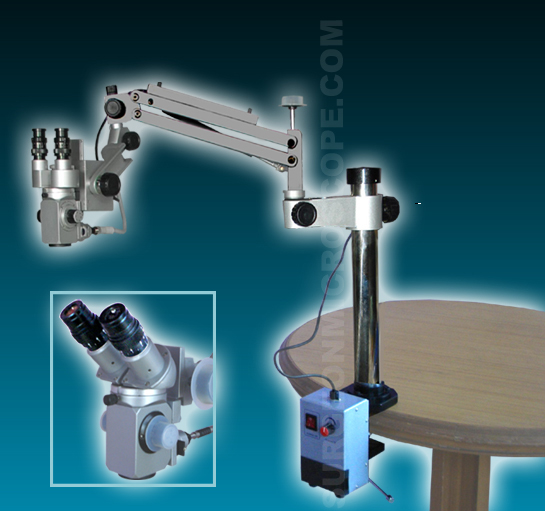

Portable Dental & ENT Microscope with Direct
Halogen Light |
|
| TECHNICAL SPECIFICATIONS |
| MICROSCOPE SECTION |
45 degree inclined Binocular Tubes
Eye Pieces : 12.5x / 16mm Dioptric Adjustment
Magnification Changes : 3 Step (7.5x, 12.5x, 20x)
Objective : F=200
Working Distance : 200mm
Interpupillary Distance : 55mm to 75mm
Focusing System : Manual |
| |
| ILLUMINATION SECTION |
Type : By Optical Light Guide System
Light Source : 15V/150W Halogen Lamp
Illumination Control : Continuous Adjustment
Field of Illumination : 70mm
Filter : Cobalt Blue, Red-Free, Heat Absorbing Filter |
| |
| GENERAL INFORMATION |
Electrical Power : AC 220V, 240V, 50/60Hz or 110 V
Power Consumption : 220VA or 110 V |
|
|
|
