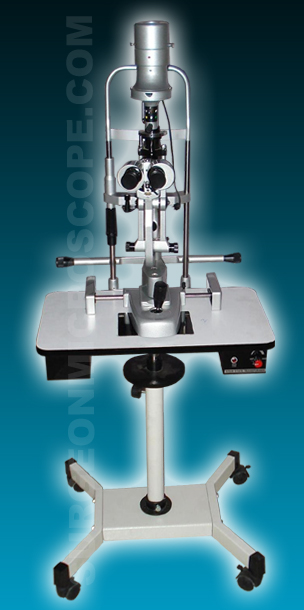

Slit Lamp with Motorized Table |
|
| TECHNICAL SPECIFICATIONS |
| Binocular Microscope |
Eye Pieces :10x, 15x
Objective :1x, 1.6x
Total Magnification :
10x, 16x and 24x |
| |
| ILLUMINATION SECTION |
Slit Image Rotation :0° to 180°
Tilting Illuminationupto :20°
Filter Disc. :Cobalt Filter, Green Filter,
Yellow Filter,Natural density and open aperture
Slit Disphragm Disc :Six apertures of 12, 9, 7, 3 and
0.2mm and wedge shaped
diaphragm for infinitely variable
slit lengths.
Halogen Lamp :6 Volt 20 Watts |
| |
| STANDARD ACCESSORIES |
· 15x Eyepieces
· Replacing Lamp one
piece for illumination unit
· Replacing Mirror
· Hruby Lens
· Plastic breath shield
· Testing Rod
· Dust Cover
·
Fuse |
| |
Electrical Power : AC 220V, 240V, 50/60Hz
or 110 V
Power Consumption : 220VA or 110 V |
|
|
| |
Slit Lamp with Manual Table |
|
| TECHNICAL SPECIFICATIONS |
| Binocular Microscope |
Eye Pieces :10x, 15x
Objective :1x, 1.6x
Total Magnification :
10x, 16x and 24x |
| |
| ILLUMINATION SECTION |
Slit Image Rotation :0° to 180°
Tilting Illuminationupto :20°
Filter Disc. :Cobalt Filter, Green Filter,
Yellow Filter,Natural density and open aperture
Slit Disphragm Disc :Six apertures of 12, 9, 7, 3 and
0.2mm and wedge shaped
diaphragm for infinitely variable
slit lengths.
Halogen Lamp :6 Volt 20 Watts |
| |
| STANDARD ACCESSORIES |
· 15x Eyepieces
· Replacing Lamp one
piece for illumination unit
· Replacing Mirror
· Hruby Lens
· Plastic breath shield
· Testing Rod
· Dust Cover
·
Fuse |
| |
Electrical Power : AC 220V, 240V, 50/60Hz
or 110 V
Power Consumption : 220VA or 110 V |
|
|
|
